Choose an opening
Lift one or more of the three gates to create a route through the dam.
Flow & water systems
Dams & Sluice Gates
Lift gates and rearrange barriers to hold back, release and redirect water.
Explore every angle
3D MODEL
Load the 3D model to rotate and zoom. Approx. 0.5 MB.
Design concept shown in a fixed pose. The 3D view explores the form; effects and mechanisms are illustrative.
FROM ACTION TO DISCOVERY
How the interaction works
Shape the route
Position removable panels downstream to redirect the released water.
Compare the result
Close or reopen a gate and observe where water collects, spills or changes direction.
A CLOSER LOOK

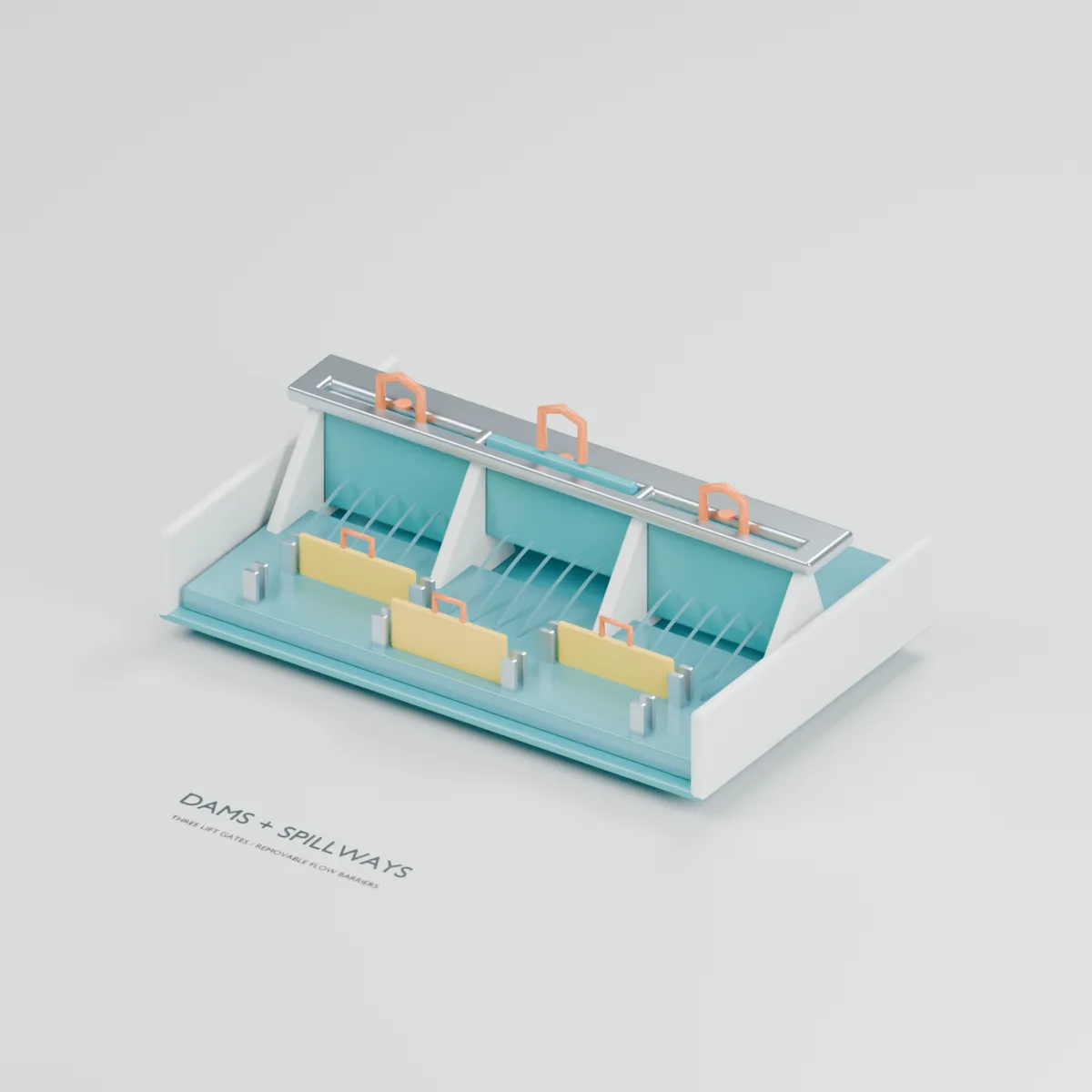

Perspective render
Explore the arrangement of three lifting sluice gates, a buttressed spillway and removable downstream panels.
LEARNING THROUGH PLAY
What visitors can discover
This concept brings flow control, water levels and problem solving into a shared water-table setting. Visitors can explore the idea at their own pace and compare what they notice with a partner.
Cause and effect
One gate adjustment can change conditions elsewhere in the channel.
Water levels
Restricting an outlet can cause water to collect upstream.
Engineering choices
Different barrier arrangements solve different routing challenges.
PART OF A BIGGER WATER TABLE
Planning Dams & Sluice Gates
Place gates and removable panels within visitor reach. Plan drainage and overflow paths alongside gate travel, handle clearances and the host water circuit.
The arrangement can be developed for a museum, science centre or play space as part of a custom water table. Final dimensions, materials and operating performance are established during design and engineering.
