Fill the first cup
The valve directs water to the highest open bucket.
Machines & motion
Cascading Tipping Buckets
Follow a chain reaction as offset cups fill, tip and pour into the next cup.
Explore every angle
3D MODEL
Load the 3D model to rotate and zoom. Approx. 1.5 MB.
Design concept shown in a fixed pose. The 3D view explores the form; effects and mechanisms are illustrative.
FROM ACTION TO DISCOVERY
How the interaction works
Pass it downward
When the cup tips, its discharge feeds the next stage.
Reset the sequence
Counterweights return emptied cups while water continues toward the basin.
A CLOSER LOOK

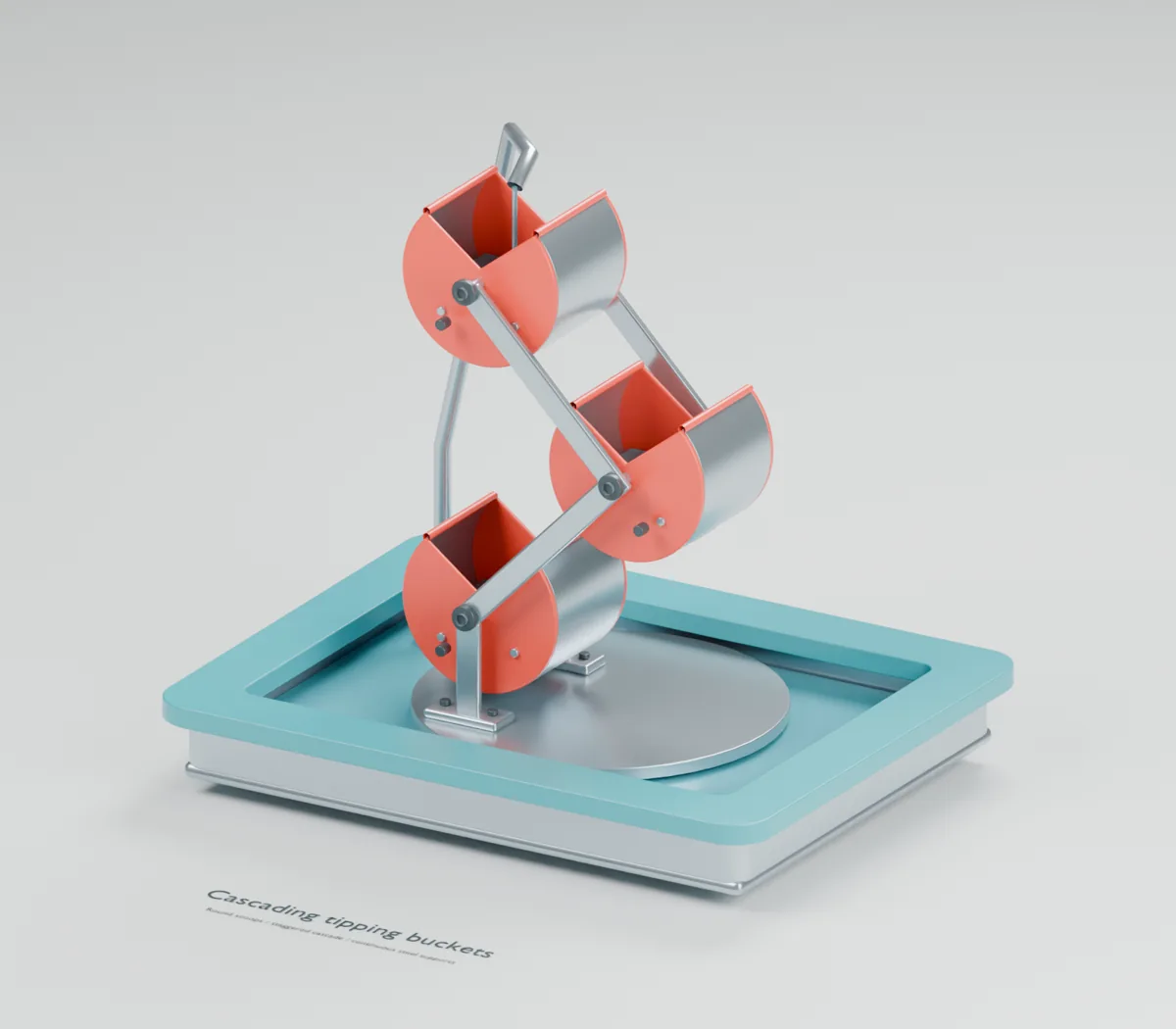

Perspective render
Explore the arrangement of a descending series of offset tipping cups with pivots, counterweights and a supply valve.
LEARNING THROUGH PLAY
What visitors can discover
This concept brings balance, sequences and gravity into a shared water-table setting. Visitors can explore the idea at their own pace and compare what they notice with a partner.
Sequences
One stage supplies the material needed for the next.
Changing balance
Accumulating water alters the turning effect at each pivot.
Prediction
Visitors anticipate which cup will move next.
PART OF A BIGGER WATER TABLE
Planning Cascading Tipping Buckets
Align each discharge with the next cup and contain the final splash. Prototype cup balance, reset weights and clearances before fixing the arrangement.
The arrangement can be developed for a museum, science centre or play space as part of a custom water table. Final dimensions, materials and operating performance are established during design and engineering.
