Locate the dial beside the transparent tube.
Nature & waves
Water Wave Tube
Explore a standing-wave concept inside a horizontal transparent tube.
Explore every angle
3D MODEL
Load the 3D model to rotate and zoom. Approx. 1.7 MB.
Design concept shown in a fixed pose. The 3D view explores the form; effects and mechanisms are illustrative.
FROM ACTION TO DISCOVERY
How the interaction works
Observe the intended response
The actuator is intended to produce repeated disturbances in the contained water.
Compare the pattern
Look for repeating high and low areas along the tube.
A CLOSER LOOK

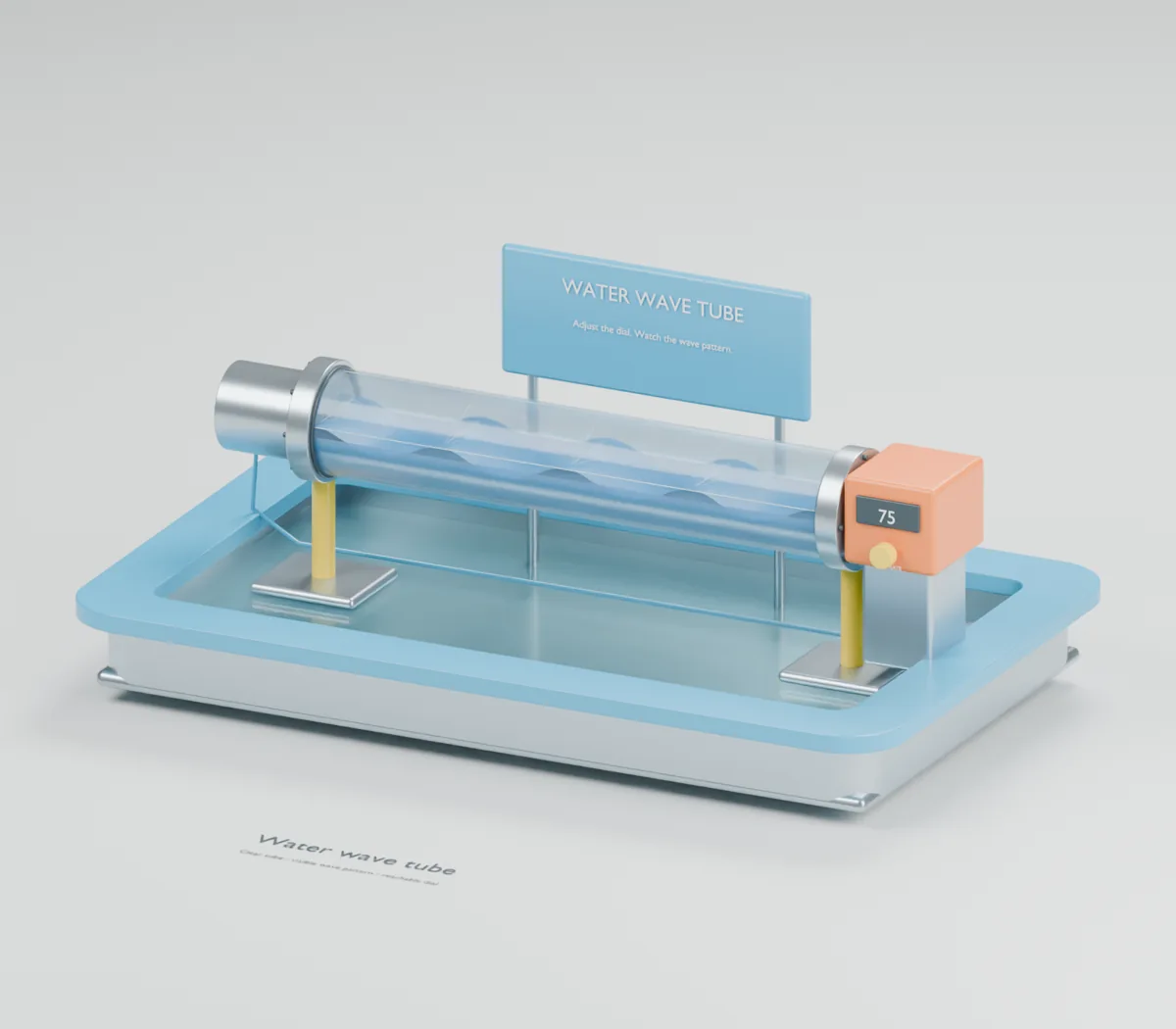

Perspective render
Explore the arrangement of a sealed clear tube, blue standing-wave pattern, bolted end flanges, actuator housing and control dial.
LEARNING THROUGH PLAY
What visitors can discover
This concept brings standing waves, patterns and repeated motion into a shared water-table setting. Visitors can explore the idea at their own pace and compare what they notice with a partner.
Patterns
A standing-wave form provides repeating features to identify.
Repeated inputs
A regular disturbance can create an organised response.
Measurement questions
Visitors can ask what a control setting represents and how changes would be compared.
PART OF A BIGGER WATER TABLE
Planning Water Wave Tube
Place the dial within reach and support the sealed tube independently. Actuator specification, sealing and a calibrated wave response must be developed beyond the displayed concept.
The arrangement can be developed for a museum, science centre or play space as part of a custom water table. Final dimensions, materials and operating performance are established during design and engineering.
